Apache Iceberg is an open table format designed for managing large-scale tabular data on cloud object storage, such as S3. It enables efficient querying and data management by supporting features like schema evolution, snapshot versioning, and time travel. Originally developed to handle big data workloads, Iceberg is optimized for performance and reliability in distributed environments. It separates the table’s metadata from the physical data files (often stored in columnar formats like Parquet), allowing scalable SQL queries through query engines like Trino or Spark. Its support for atomic operations and concurrent reads/writes makes it a powerful foundation for building modern data lakes and federated data platforms.
An Apache Iceberg instance was deployed on the UCA Infrastructure[16], using Ceph S3 storage, PySpark to initialise the Iceberg Lake house files and then using Trino and the Trino JDBC driver to expose the Data Lakehouse tables to a public ERDDAP instance. The dataset GLODAP v2.2023[17] was loaded into the Iceberg Lakehouse and published through the ERDDAP instance.[18]

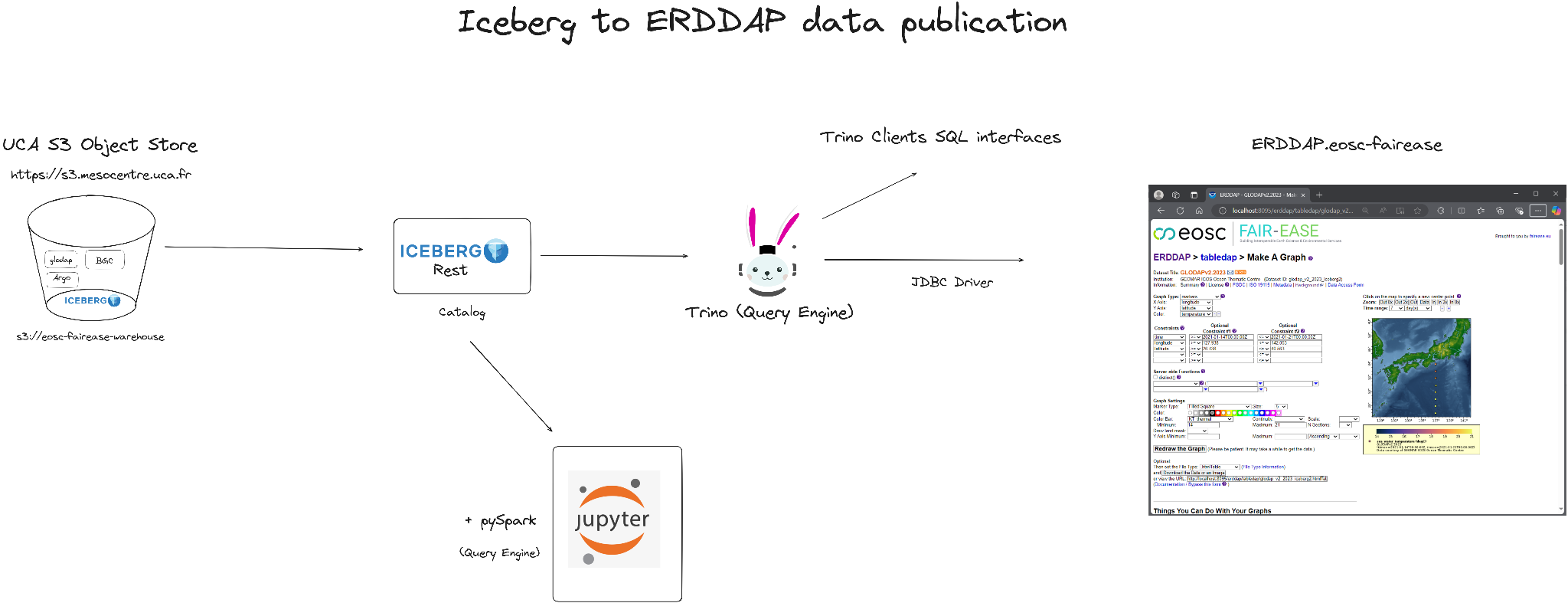

An architecture diagram on how Apache Iceberg was deployed on the UCA Infrastructure is displayed below. An example local docker setup has also been created for users to experiment with on their own systems, it is available on Github[19] and uses Minio as a local S3 object store. This can also be reconfigured to use cloud hosted S3 object stores.
Figure 1:Apache Iceberg Trino and ERDDAP
Geomatys is actively working to integrate Apache SIS, an open-source geospatial framework they maintain and which is at the core of the Examind Community platform, in order to handle geospatial [meta]data associated with Iceberg tables. The goal is to eventually offer standardized OGC-compliant services powered by an Apache Iceberg backend, bridging big data infrastructures with geospatial interoperability. Work to standardise geospatial components in iceberg is also in progress, as is the development and design of a standard schema (like geojson) for iceberg to manage geospatial data, temporal data, 4D data, chunked data, etc. This work is still on-going.
