using Sentinel-5P TROPOMI data¶
This notebook demonstrates how to estimate SO2 (sulfur dioxide) flux emitted by Piton de la Fournaise volcano, using SO2 mass burdens from Sentinel-5P TROPOMI imagery.¶
Mass burdens are extracted the VolcPlume portal (https://
The notebook shows how mass can be converted to SO2 flux using the method described in Grandin et al. (2024).¶
Reference (JGR-Solid Earth)¶
Grandin, R., Boichu, M., Mathurin, T., & Pascal, N. (2024).
Automatic estimation of daily volcanic sulfur dioxide gas flux from TROPOMI satellite observations: Application to Etna and Piton de la Fournaise.
Journal of Geophysical Research: Solid Earth, 129(6), e2024JB029309.
Grandin et al. (2024)
Algorithm source (ICARE GitLab)¶
https://
Dataset (EaSy Data repository)¶
Grandin, R., Boichu, M., Mathurin, T., & Pascal, N. (2024b).
Sulfur Dioxide emissions from Etna and Piton de la Fournaise volcanoes (2021-2023)
from Sentinel-5P/TROPOMI [Dataset].
GRANDIN Raphael (2024)
VolcPlume portal¶
Boichu, M and Mathurin, T (2022)
“VOLCPLUME, an interactive web portal for the multiscale analysis
of volcanic plume physico-chemical properties.”.
[Interactive Web based Ressource]
Direct access: https://
Boichu (2022)
Author: Raphaël Grandin - March 2025 - grandin - at - ipgp.fr¶
Import packages¶
# For installation, please follow guidelines in https://gitlab.in2p3.fr/ForMaTer/gaia-data/use-case-volcan/so2-tropomi
from so2_tropomi import *
from so2_flux_calculator.command_line import read_mass_from_csv, read_cf_from_csv---------------------------------------------------------------------------
ModuleNotFoundError Traceback (most recent call last)
Cell In[1], line 2
1 # For installation, please follow guidelines in https://gitlab.in2p3.fr/ForMaTer/gaia-data/use-case-volcan/so2-tropomi
----> 2 from so2_tropomi import *
3 from so2_flux_calculator.command_line import read_mass_from_csv, read_cf_from_csv
ModuleNotFoundError: No module named 'so2_tropomi'Search for product in Easy Data repository¶
Setup search API¶
EASY_DATA_API_URL="https://www.easydata.earth/api/csw"Search product and dataset using bounding box¶
string_search = "Piton de la Fournaise"
bbox = "151.09596,-33.609279,151.336939,-33.479914"
request_url = EASY_DATA_API_URL + "?REQUEST=GetRecords&SERVICE=CSW&VERSION=2.0.2&namespace=xmlns(csw=http%3A%2F%2Fwww.opengis.net%2Fcat%2Fcsw%2F2.0.2)&OUTPUTSCHEMA=http://www.isotc211.org/2005/gmd&constraintLanguage=CQL_TEXT&constraint_language_version=1.1.0&constraint=csw:title+LIKE+'" + string_search + "'&typeNames=csw:Record&resultType=results&ElementSetName=brief"
request_urlr = requests.get(request_url, allow_redirects=True, headers=headers)#.json()#['data']
root = ET.fromstring(r.text)
ET.dump(root)The above search allows for identifying the product and dataset IDs¶
# ID of the product "Volcanic Sulfur Dioxide emissions from Sentinel-5P/TROPOMI (Etna and Piton de la Fournaise)"
PRODUCT_ID="b6d83680-00ac-4d7f-9651-5eac38c3c42f"
# Dataset ID (last part of the DOI)
DATASET_ID="235f8c42-142b-40ee-9948-518e83554a7d"Search within product¶
request_url = EASY_DATA_API_URL + "?service=CSW&request=GetRecordById&version=2.0.2&id=%s" % PRODUCT_ID
display(request_url)
r = requests.get(request_url, allow_redirects=True, headers=headers)#.json()#['data']
root = ET.fromstring(r.text)
ET.dump(root)
#tree#.write("file.xml")Search within dataset¶
request_url = EASY_DATA_API_URL + "?service=CSW&request=GetRecordById&version=2.0.2&id=%s&ElementSetName=full" % DATASET_ID
display(request_url)r = requests.get(request_url, allow_redirects=True, headers=headers)#.json()#['data']
root = ET.fromstring(r.text)
ET.dump(root)Download data¶
Dataset URL¶
data_in_SO2_mass_URL = "https://www.easydata.earth/back/public-api/v1/metadata/datasets/235f8c42-142b-40ee-9948-518e83554a7d/files/TROPOMI_SO2-7km_mass_25-50-75-100-150-200-250-300-400-500km_Fournaise-Piton-de-la_sza-90_tracks-7_du-0_qa-0_2021-09-15_2023-09-14.csv"
data_in_cloud_fraction_URL = "https://www.easydata.earth/back/public-api/v1/metadata/datasets/235f8c42-142b-40ee-9948-518e83554a7d/files/TROPOMI_CloudFraction_mean_25-50-75-100-150-200-250-300-400-500km_Fournaise-Piton-de-la_sza-90_tracks-7_qa-0_2021-09-15_2023-09-14.csv"Read SO2 mass and cloud fraction¶
def filename_from_url(url):
r = requests.get(url, headers=headers)
filename = get_filename_from_cd(r.headers.get('content-disposition'))
with open(filename, 'wb') as file:
file.write(r.content)
return filename
# Save files locally
localfilename_so2 = filename_from_url(data_in_SO2_mass_URL)
localfilename_cf = filename_from_url(data_in_cloud_fraction_URL)
# Read CSV
df_so2_mass = read_mass_from_csv(localfilename_so2, utc_time=0)
df_cf = read_cf_from_csv(localfilename_cf, utc_time=0)
# Display result
display(df_so2_mass.head(), df_cf.head())Compute SO2 flux with fixed wind speed¶
from so2_flux_calculator.command_line import run
run(csv_in_mass=localfilename_so2,
cloud_fraction_file=localfilename_cf,
output_directory='.',
output_file="Piton_SO2_flux",

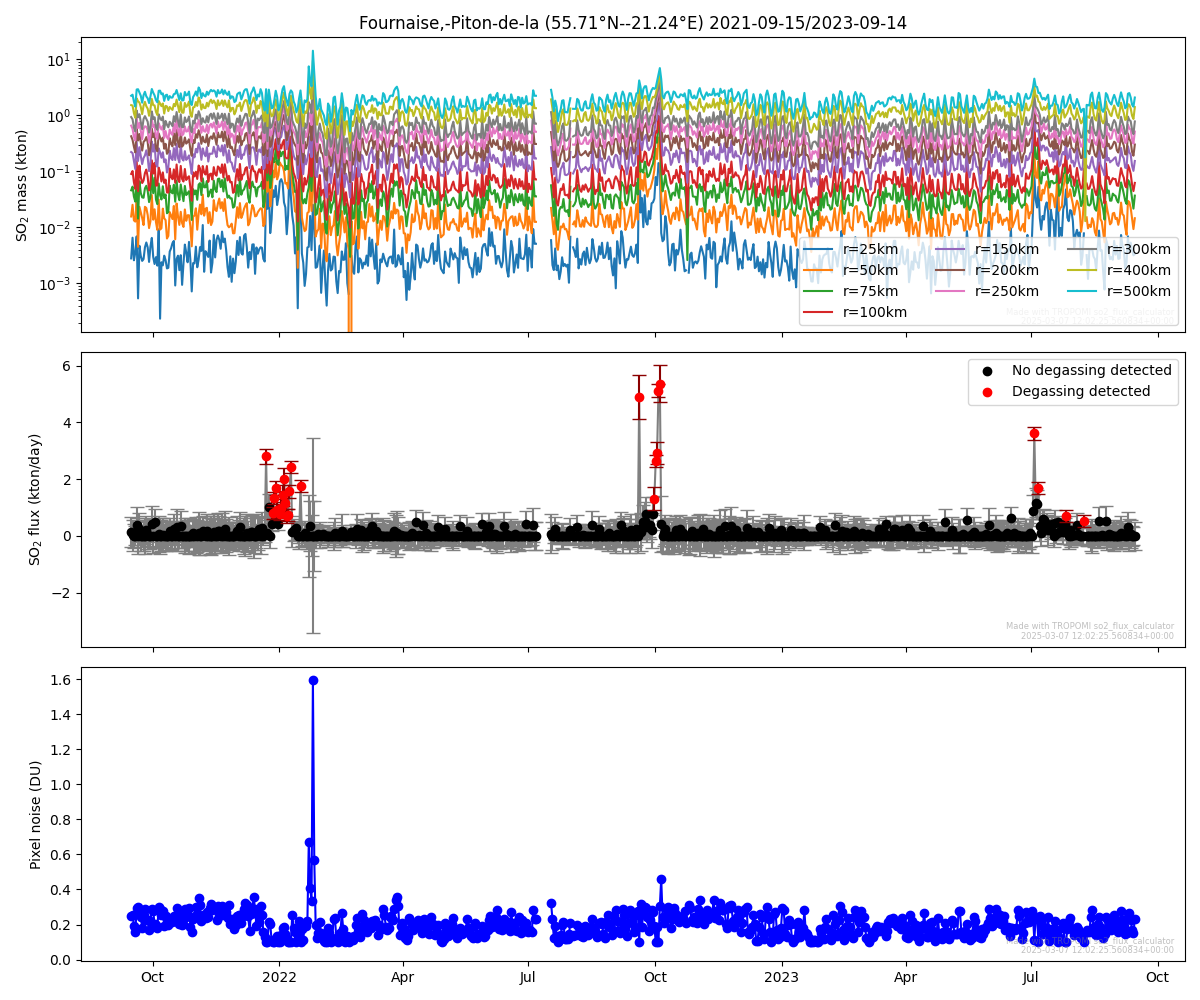

wind_speed_fixed=6)## Uncomment lines below to display PNG in cell
from IPython.display import Image
Image("Piton_SO2_flux.png")
Interactive version (opens in new tab)¶
run(csv_in_mass=localfilename_so2,
cloud_fraction_file=localfilename_cf,
output_directory='.',
output_file="Piton_SO2_flux",
wind_speed_fixed=6,
interactive_figure=True)- GRANDIN Raphael. (2024). Sulfur Dioxide emissions from Etna and Piton de la Fournaise volcanoes (2021-2023) from Sentinel-5P/TROPOMI. Data Terra. 10.57932/235F8C42-142B-40EE-9948-518E83554A7D
- Grandin, R., Boichu, M., Mathurin, T., & Pascal, N. (2024). Automatic Estimation of Daily Volcanic Sulfur Dioxide Gas Flux From TROPOMI Satellite Observations: Application to Etna and Piton de la Fournaise. Journal of Geophysical Research: Solid Earth, 129(6). 10.1029/2024jb029309
- Boichu, M. (2022). VolcPlume Portal. Aeris. 10.25326/362
